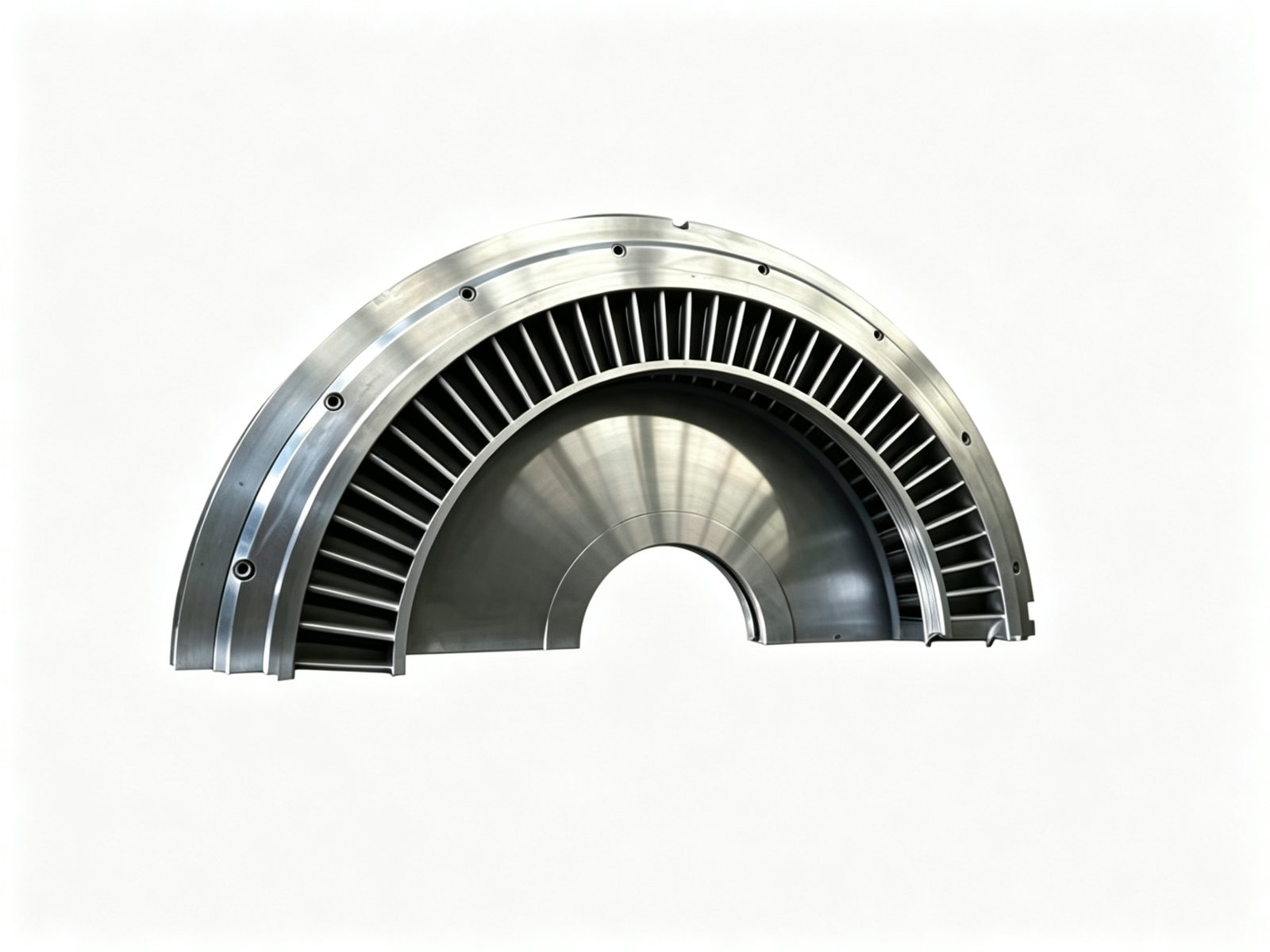

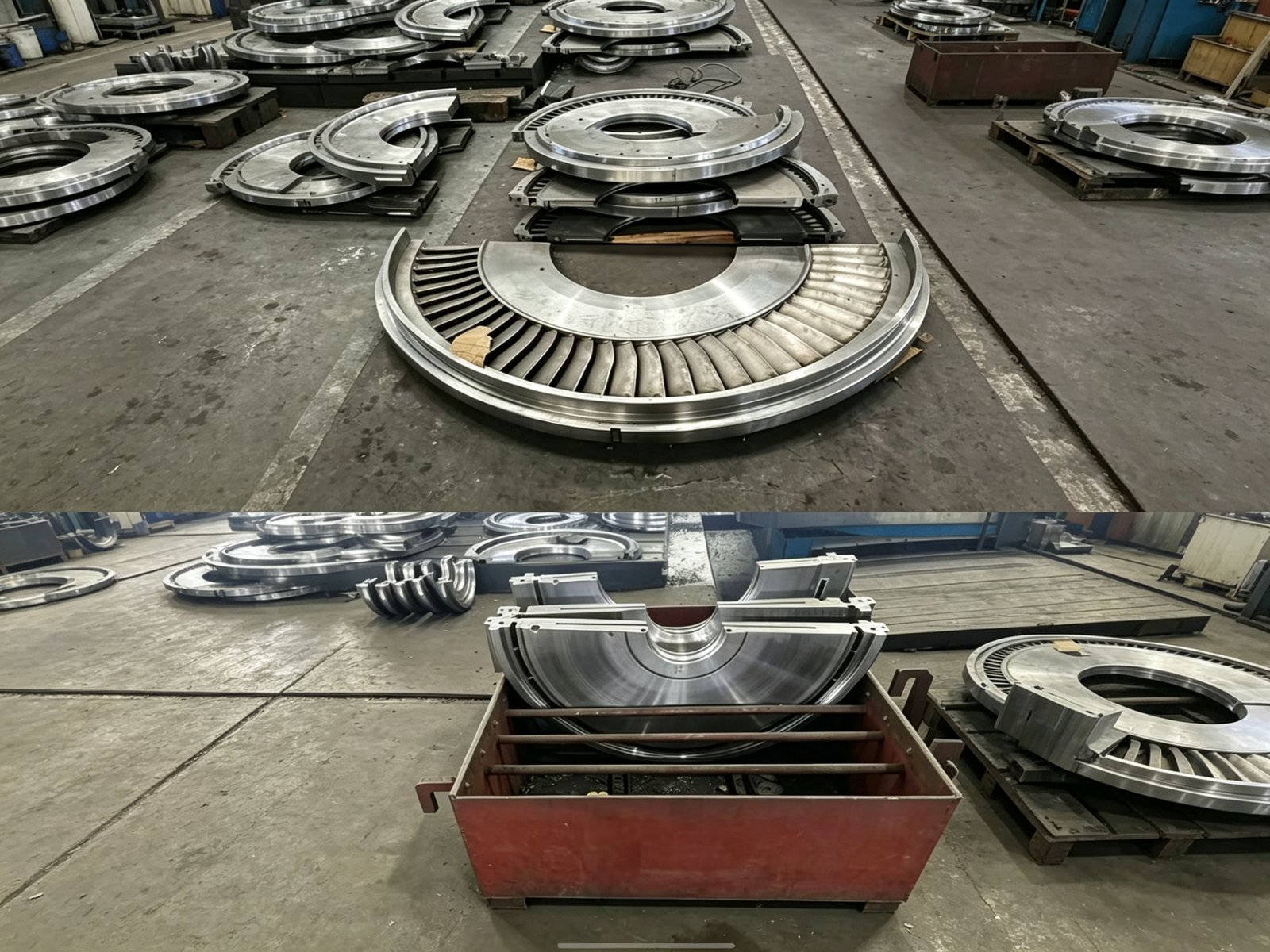

Steam Turbine Diaphragm
Steam turbine diaphragms that guide steam flow between stages and support nozzle rings.
Technical Specifications
| Power Range | 0.5 MW – 200 MW |
|---|---|
| Inlet Steam Pressure | Up to 9.8 MPa |
| Inlet Steam Temperature | Up to 540 °C |
| Speed | 3,000 / 1,500 rpm |
| Application | Thermal power, industrial process, CHP |
| Standard | IEC / ISO / ASME |
Key Features
- Engineered for reliability in continuous industrial operation.
- Manufactured in LUOYANG with full-process quality control.
- Supported by TUHAO lifecycle services and spare-parts supply.
- Customizable to project-specific technical requirements.
Request a quote for Steam Turbine Diaphragm · More Steam Turbine
